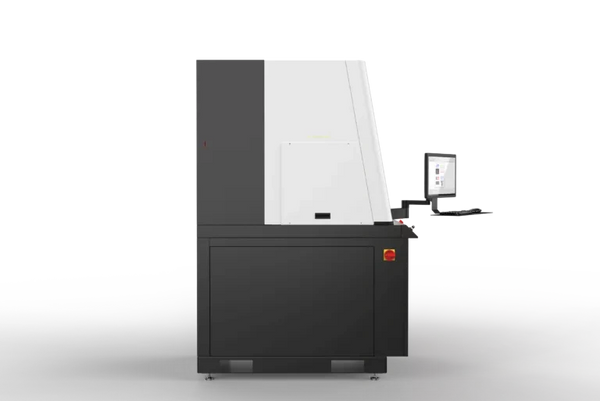

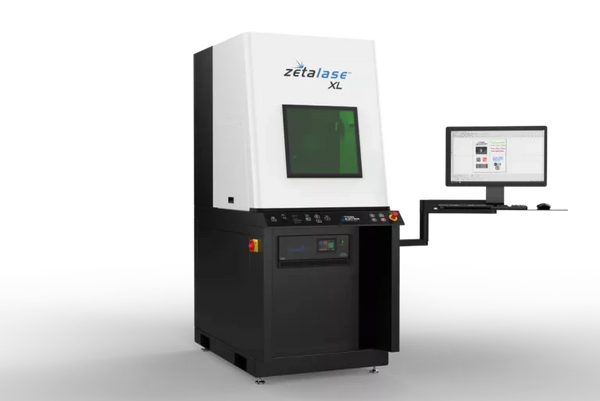

Zetalase™ XL 3D Laser Marking System

Zetalase™ XL 3D offers an expansive work area and is highly configurable for a variety of applications and is ideal for the processing of large components or trays of parts. Standard programmable focal height is controlled via software for automatic focus adjustment between part types. A front vertical pneumatic door with a patented safety system, recessed front operator footrest, and machine auto mode maximize ergonomics for high-volume processing. Have large or long parts to process? Class 4 capability for open door marking is possible with our service override key, removable side panels, safety warning lights, and optional laser safety glasses. Available options include a gantry Y-axis for increased marking field size and rotary devices for marking around the diameter of components.

System Dimensions: 52″ x 32″ x 74″

Weight (approx.): 500lbs

Max Part Size: 24″ x 30″ or  42″ x 15″

Laser Focus Control: Programmable

Door Type: Automatic with Patented Safety

Zetalase™ XL LFSS 3D offers an expansive work area and is highly configurable for a variety of applications and is ideal for the processing of large components or trays of parts. Standard programmable focal height is controlled via software for automatic focus adjustment between part types. A front vertical pneumatic door with a patented safety system, recessed front operator footrest, and machine auto mode maximize ergonomics for high-volume processing. Have large or long parts to process? Class 4 capability for open door marking is possible with our service override key, removable side panels, safety warning lights, and optional laser safety glasses. Available options include a gantry Y-axis for increased marking field size and rotary devices for marking around the diameter of components.

System Dimensions: 52″ x 32″ x 74″

Weight (approx.): 500lbs

Max Part Size: 24″ x 30″ or  42″ x 15″

Laser Focus Control: Programmable

Door Type: Automatic with Patented Safety

Zetalase™ XLT offers an expansive work area and is highly configurable for a variety of applications and is ideal for the processing of large components or trays of parts. Standard programmable focal height is controlled via software for automatic focus adjustment between part types. A front vertical pneumatic door with a patented safety system, recessed front, and machine auto mode maximizes ergonomics for high-volume processing. Have large or long parts to process? Class 4 capability for open door marking is possible with our service override key, removable side panels, safety warning lights, and optional laser safety glasses. Optional rotary devices enable marking around the diameter of components.

System Dimensions: 66″ x 59″ x 88″

Weight (approx.): 1,650lbs

Max Part Size: 36″ x 52″

Laser Focus Control: Programmable

Door Type: Automatic with Patented Safety

Zetalase™ XL CO2 offers an expansive work area and is highly configurable for a variety of applications and is ideal for the processing of large components or trays of parts. Standard programmable focal height is controlled via software for automatic focus adjustment between part types. A front vertical pneumatic door with a patented safety system, recessed front operator footrest, and machine auto mode maximize ergonomics for high-volume processing. Have large or long parts to process? Class 4 capability for open door marking is possible with our service override key, removable side panels, safety warning lights, and optional laser safety glasses. Available options include a linear Y-axis for increased marking field size and rotary devices for marking around the diameter of components.

System Dimensions: 52″ x 32″ x 74″

Weight (approx.): 500lbs

Max Part Size: 24″ x 30″ or  42″ x 15″

Laser Focus Control: Programmable

Door Type: Automatic with Patented Safety
